Optimization-Based Identification Methods for General Input-Output Model

This notebook demonstrates the use of optimization-based identification methods for general input-output models.

# Import required libraries
import control.matlab as cnt
import numpy as np
from utils import (
    W_V,
    plot_bode,
    plot_response,
    plot_responses,
)

from sippy_unipi import system_identification
from sippy_unipi.datasets import gen_gbn_seq, load_sample_siso, white_noise_var
from sippy_unipi.evaluate import validation

np.random.seed(0)
ylegends = ["System", "ARMA", "ARARX", "ARARMAX", "OE", "BJ", "GEN"]

# Load sample data
n_samples = 401
ts = 1.0
time, Ysim, Usim, g_sys, Yerr, Uerr, h_sys, Ytot, Utot = load_sample_siso(
    n_samples, ts, seed=0
)

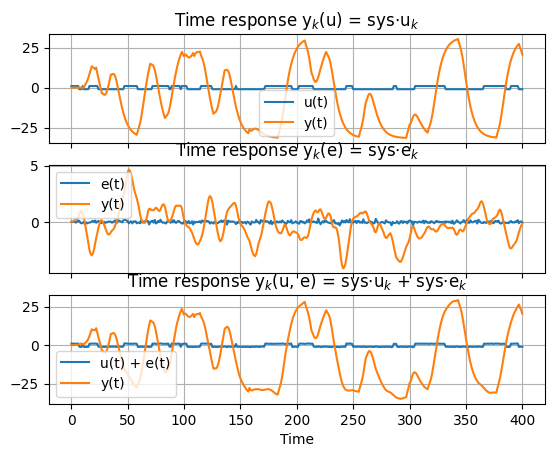

# Plot input and output responses
fig = plot_responses(
    time,
    [Usim, Uerr, Utot],
    [Ysim, Yerr, Ytot],
    ["u", "e", ["u", "e"]],
)

# Define identification parameters
mode = "FIXED"

if mode == "IC":
    na_ord = [2, 2]
    nb_ord = [3, 3]
    nc_ord = [2, 2]
    nd_ord = [3, 3]
    nf_ord = [4, 4]
    theta = [11, 11]
else:
    na_ord = [2]
    nb_ord = [[3]]
    nc_ord = [2]
    nd_ord = [3]
    nf_ord = [4]
    theta = [[11]]

identification_params = {
    "ARMA": ((na_ord, nc_ord, theta), {"IC": "BIC"}),
    "ARARX": ((na_ord, nb_ord, nd_ord, theta), {"IC": "BIC"}),
    "ARARMAX": ((na_ord, nb_ord, nc_ord, nd_ord, theta), {"IC": "BIC"}),
    "OE": ((nb_ord, nf_ord, theta), {"IC": "BIC"}),
    "BJ": ((nb_ord, nc_ord, nd_ord, nf_ord, theta), {"IC": "BIC"}),
    "GEN": (
        (na_ord, nb_ord, nc_ord, nd_ord, nf_ord, theta),
        {"IC": "BIC"},
    ),
}

# Perform system identification
syss = []
for method, orders_params in identification_params.items():
    orders, params = orders_params
    sys_id = system_identification(
        Ytot, Usim, method, *orders, max_iter=300, id_mode="OPT"
    )
    syss.append(sys_id)

ys = [getattr(sys, "y_id").T for sys in syss]

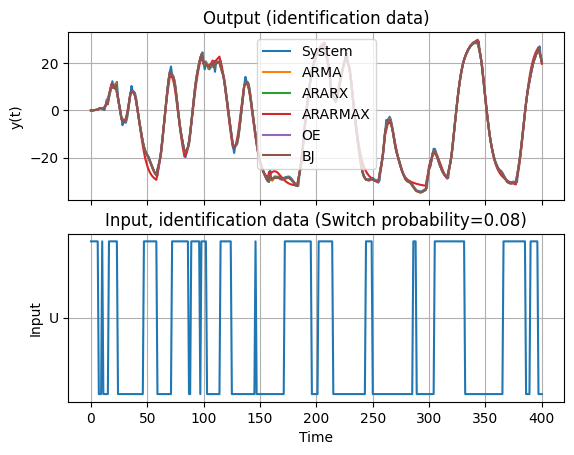

# Plot consistency of identified systems
fig = plot_response(
    time,
    ys,
    Usim,
    legends=[ylegends, ["U"]],
    titles=[
        "Output (identification data)",
        "Input, identification data (Switch probability=0.08)",
    ],
)

# Validation of identified systems
switch_probability = 0.07
input_range = (0.5, 1.5)
[U_valid, _, _] = gen_gbn_seq(n_samples, switch_probability, scale=input_range)
white_noise_variance = [0.01]
e_valid = white_noise_var(U_valid.size, white_noise_variance)[0]

Yvalid1, time, Xsim = cnt.lsim(g_sys, U_valid, time)
Yvalid2, time, Xsim = cnt.lsim(h_sys, e_valid, time)
Ytotvalid = Yvalid1 + Yvalid2

ys = [validation(sys, U_valid, Ytotvalid, time) for sys in syss]

/home/runner/work/SIPPY/SIPPY/.venv/lib/python3.12/site-packages/control/timeresp.py:1083: UserWarning: return_x specified for a transfer function system. Internal conversion to state space used; results may meaningless.
  warnings.warn(

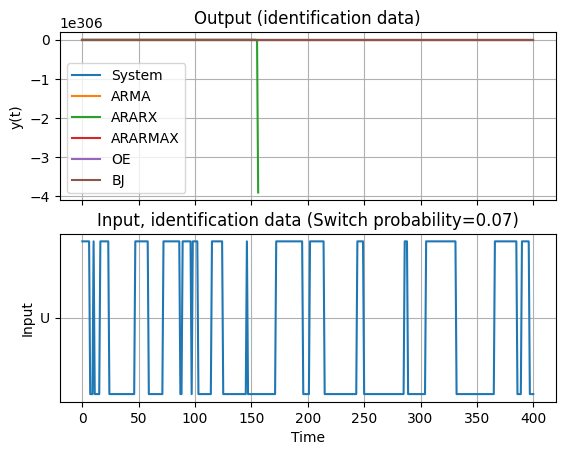

# Plot validation results
fig = plot_response(
    time,
    ys,
    Usim,
    legends=[ylegends, ["U"]],
    titles=[
        "Output (identification data)",
        "Input, identification data (Switch probability=0.07)",
    ],
)

# Compute RMSE and Explained Variance
for y, sys in zip(ys, syss):
    yv = y.T
    rmse = np.round(np.sqrt(np.mean((Ytotvalid - yv) ** 2)), 2)
    EV = 100.0 * (
        np.round((1.0 - np.mean((Ytotvalid - yv) ** 2) / np.std(Ytotvalid)), 2)
    )
    print(f"RMSE = {rmse}")
    print(f"Explained Variance = {EV}%")

RMSE = 18.38
Explained Variance = -2533.0%
RMSE = 18.55
Explained Variance = -2582.0%
RMSE = nan
Explained Variance = nan%
RMSE = 6.239365790193098e+36
Explained Variance = -3.0334346177840173e+74%
RMSE = 18.37
Explained Variance = -2529.0%
RMSE = 18.56
Explained Variance = -2584.0%


/tmp/ipykernel_2712/1075725442.py:4: RuntimeWarning: overflow encountered in square
  rmse = np.round(np.sqrt(np.mean((Ytotvalid - yv) ** 2)), 2)
/home/runner/work/SIPPY/SIPPY/.venv/lib/python3.12/site-packages/numpy/_core/_methods.py:135: RuntimeWarning: overflow encountered in reduce
  ret = umr_sum(arr, axis, dtype, out, keepdims, where=where)
/tmp/ipykernel_2712/1075725442.py:6: RuntimeWarning: overflow encountered in square
  np.round((1.0 - np.mean((Ytotvalid - yv) ** 2) / np.std(Ytotvalid)), 2)

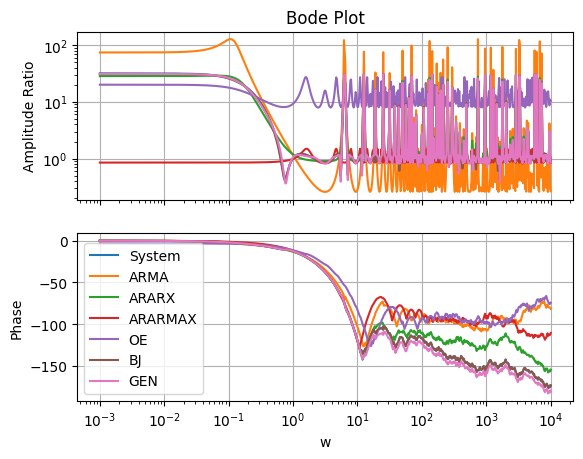

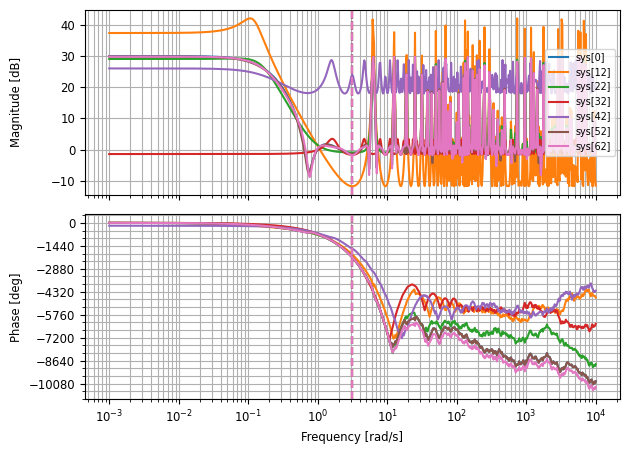

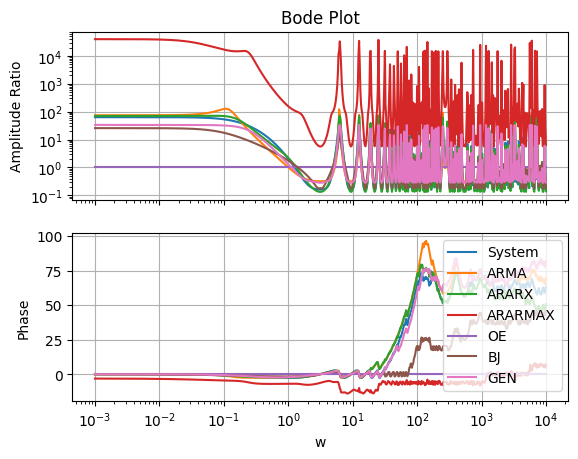

# Step tests
u = np.ones_like(time)
u[0] = 0

for tf in ["G", "H"]:
    syss_tfs = [
        locals()[f"{tf.lower()}_sys"],
        *[getattr(sys, tf) for sys in syss],
    ]
    mags, fis, oms = zip(*[cnt.bode(sys, W_V) for sys in syss_tfs])

    fig = plot_bode(
        oms[0],
        mags,
        fis,
        ylegends,
    )

    ys, _ = zip(*[cnt.step(sys, time) for sys in syss_tfs])

    fig = plot_response(
        time,
        ys,
        u,
        legends=[ylegends, ["U"]],
        titles=["Step Response G(z)", None],
    )
